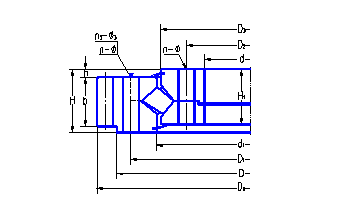

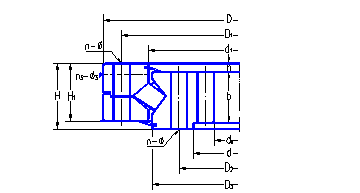

Crossed tapered roller according to JB2300

點擊量：1628次 日期：2020/3/20 來源：Jiayu Bearing


	軸承型號Designations		外形尺寸 Boundary dimensions			安裝孔尺寸 Bolt hole diameter				結構尺寸 Structure dimensions						齒輪參數 Gear parameters							額定負荷 Basic load ratings	質量 Mass
無齒式	外齒式	內齒式	D	d	H	D1	D2	n	φ	D3	d1	H1	h	n3	φ3	m	Da	Z	da	Z	b	x	Coa
non-gear type	external gear type	internal gear type	mm			mm			mm	mm					mm		mm		mm		mm		10⁴ N	kg
120·32·1600·**	121·32·1600·**	123·32·1600·**	1740	1460	91	1687	1513	45	26	1598	1602	81	10	8	M10×1	14	1820	127	1386	100	75	+0.5	412	440
	122·32·1600·**	124·32·1600·**	1740	1460	91	1687	1513	45	26	1598	1602	81	10	8	M10×1	16	1824	111	1376	87	75	+0.5	412	440
120·32·1600·03K			1740	1460	100	1687	1513	48	26	1598	1602	90	10	8	M10×1	--	--	--	--	--	--	--	469	429
120·32·1800·**	121·32·1800·**	123·32·1800·**	1940	1660	91	1887	1713	45	26	1798	1802	81	10	8	M10×1	14	2016	141	1568	113	75	+0.5	460	500
	122·32·1800·**	124·32·1800·**	1940	1660	91	1887	1713	45	26	1798	1802	81	10	8	M10×1	16	2016	123	1568	99	75	+0.5	460	500

120·40·2000·**	121·40·2000·**	123·40·2000·**	2178	1825	112	2110	1891	48	33	1998	2002	100	12	8	M10×1	16	2272	139	1728	109	90	+0.5	686	900
	122·40·2200·**	124·40·2000·**	2178	1825	112	2110	1891	48	33	1998	2002	100	12	8	M10×1	18	2268	123	1728	97	90	+0.5	686	900
120·40·2240·**	121·40·2240·**	123·40·2240·**	2418	2065	112	2350	2131	48	33	2237.5	2242.5	100	12	8	M10×1	16	2496	153	1984	125	90	+0.5	764	1000
	122·40·2240·**	124·40·2240·**	2418	2065	112	2350	2131	48	33	2237.5	2242.5	100	12	8	M10×1	18	2502	136	1980	111	90	+0.5	764	1000
120·40·2500·**	121·40·2500·**	123·40·2500·**	2678	2325	112	2610	2391	56	33	2497.5	2502.5	100	12	8	M10×1	18	2772	151	2232	125	90	+0.5	852	1100
	122·40·2500·**	124·40·2500·**	2678	2325	112	2610	2391	56	33	2497.5	2502.5	100	12	8	M10×1	20	2780	136	2220	112	90	+0.5	852	1100
120·40·2800·**	121·40·2800·**	123·40·2800·**	2978	2625	112	2910	2691	56	33	2797.5	2802.5	100	12	8	M10×1	18	3078	168	2520	141	90	+0.5	960	1250
	122·40·2800·**	124·40·2800·**	2978	2625	112	2910	2691	56	33	2797.5	2802.5	100	12	8	M10×1	20	3080	151	2520	127	90	+0.5	960	1250

120·50·3150·**	121·50·3150·**	123·50·3150·**	3376	2922	134	3286	3014	56	45	3147.5	3152.5	122	12	8	M10×1	20	3480	171	2820	142	110	+0.5	1380	2150
	122·50·3150·**	124·50·3150·**	3376	2922	134	3286	3014	56	45	3147.5	3152.5	122	12	8	M10×1	22	3476	155	2816	129	110	+0.5	1380	2150
120·50·3550·**	121·50·3550·**	123·50·3550·**	3776	3322	134	3686	3414	56	45	3547.5	3552.5	122	12	8	M10×1	20	3880	191	3220	162	110	+0.5	1570	2470
	122·50·3550·**	124·50·3550·**	3776	3322	134	3686	3414	56	45	3547.5	3552.5	122	12	8	M10×1	22	3894	174	3212	147	110	+0.5	1570	2470
120·50·4000·**	121·50·4000·**	123·50·4000·**	4226	3772	134	4136	3864	60	45	3997.5	4002.5	122	12	10	M10×1	22	4334	194	3652	167	110	+0.5	1760	2800
	122·50·4000·**	124·50·4000·**	4226	3772	134	4136	3864	60	45	3997.5	4002.5	122	12	10	M10×1	25	4350	171	3650	147	110	+0.5	1760	2800
120·50·4500·**	121·50·4500·**	123·50·4500·**	4726	4272	134	4636	4364	60	45	4497.5	4502.5	122	12	10	M10×1	22	3840	217	4158	190	110	+0.5	1980	3100
	122·50·4500·**	124·50·4500·**	4726	4272	134	4636	4364	60	45	4497.5	4502.5	122	12	10	M10×1	25	4850	191	4150	167	110	+0.5	1980	3100
